Guillotine systems, which are widely used today, were generally preferred on the ground floors due to the difficulty of cleaning. The system, which has been redesigned to solve the cleaning problem of the system with the new developed methods and to offer more comfortable cleaning in areas such as balconies and terraces, especially in the residences located on high floors, provided both cleaning and ventilation of the environment by opening the lower panel and middle panel inward by 22.5°. mode of operation: Different from the way glazing systems work, the panels are systems that open and close as a result of vertical operation with automation method. The motor, to which the chain or belt attached to the sub-panel is connected, runs up or down with the command of the system control buttons..
Considering the shortcomings of the guillotine systems used as Lockwin, we produced alternative series depending on the purpose of use. Designed to provide higher insulation in application areas, NOVARS TERMO guillotine series with insulated heat barrier profile and NOVARS insulating glass guillotine series provide maximum insulation and allow you to create more comfortable living spaces.
Aluminum feature: EN6063 / T5 Thermal 7-13
Insulated barrier : Fireproof polyamide barrier
Colour options : Press, rall colour, Wood veneer
Glass type: 24mm combination double glazing
System option : Standard opening, –Transom (can be cleaned)
Carrier mechanism: chain system
Sealing : UV Additive bristle brush, gasket
Glass profile combination : polyurethane adhesive
Maximum system height : 3000 mm
Maximum width: 4000 mm(suggested)
used engine : tubular motor with 120 nw receiver
Engine carrying capacity : 200 kg
Barrier profile
Bottom case details
Insulated side case details
Upper box details

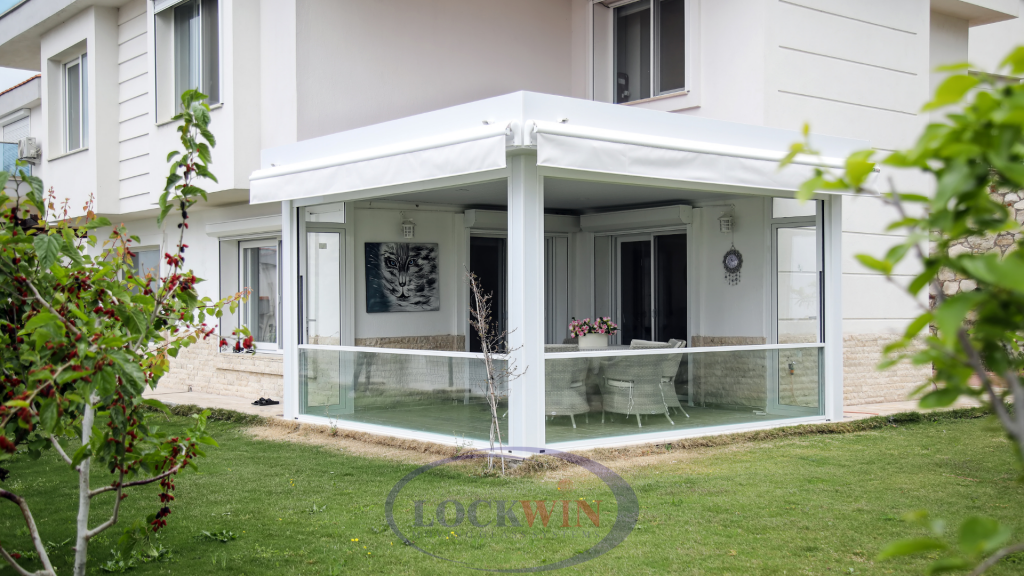

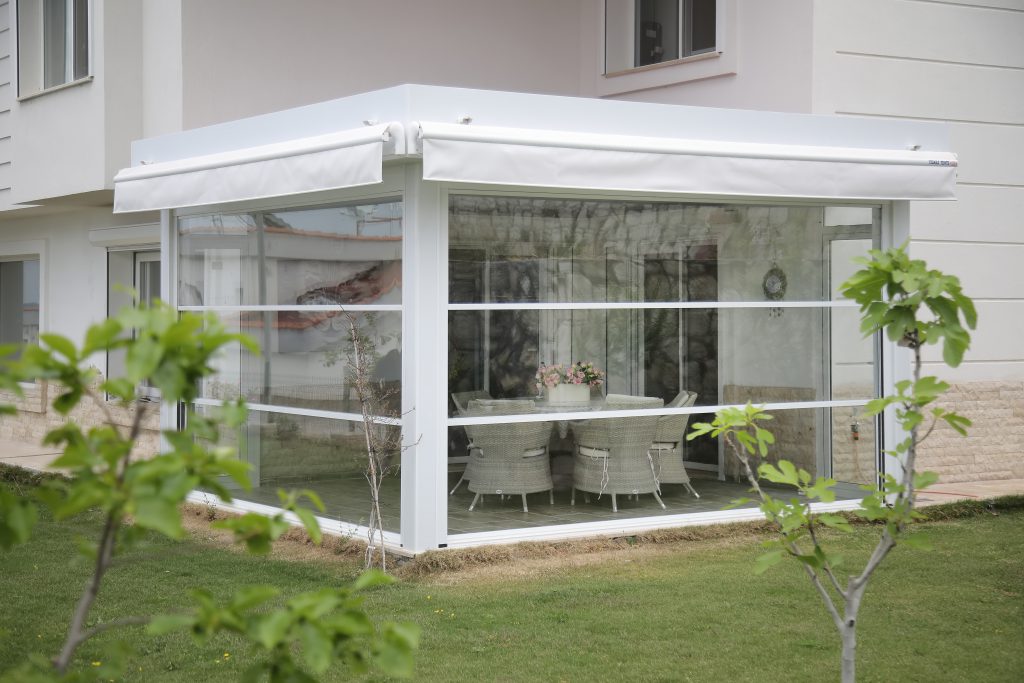

General View
Vasistas View
