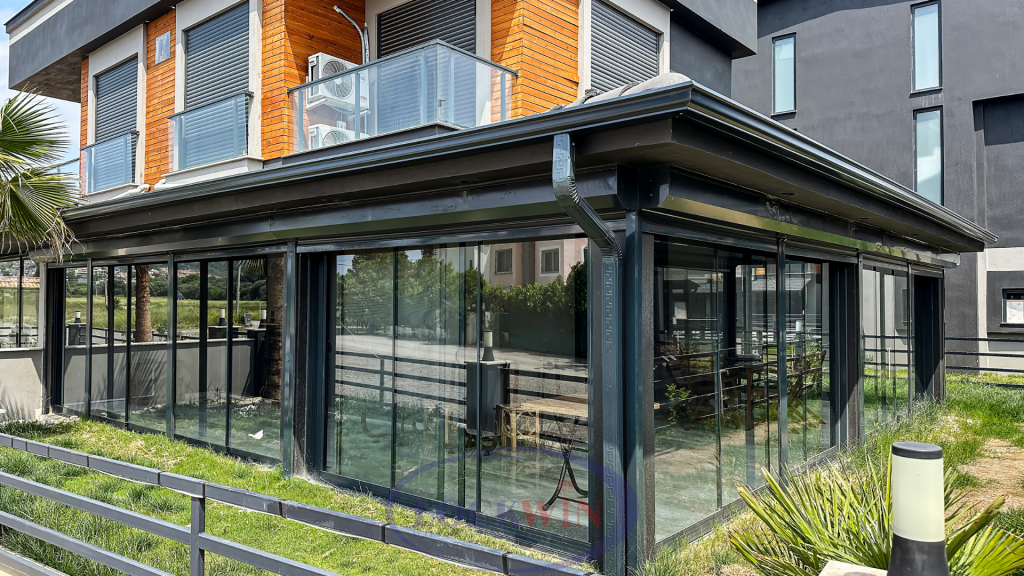

Sliding systems, which stand out with their easy use among glass balcony systems today, provide a panoramic view with minimum profile and maximum glass feature and offer wider and more comfortable living spaces. It is especially preferred in areas such as balconies, terraces and winter gardens outside the living area. How the system works: It opens and closes by sliding the panels to the right or left parallel to each other. System options: A system with a threshold is preferred for sections without a transition area, and a system without a threshold is preferred for sections with a transition area.
Considering the shortcomings of the sliding systems used as Lockwin, we have produced alternative series depending on the purpose of use. It consists of ANKA THERMO sliding, ANKA DOUBLE GLASS sliding and L.EGE sliding series suitable for 8-10 mm glass use, the profiles of which are designed with polyamide barrier for water that captured between inner surface of profiles due to adverse external weather conditions.
Aluminum feature : EN6063 / T5 Thermal 7-13
Color options :Grey ,Rall colour , Wood veneer
Glass type : 8 mm , 10 mm glass
carrier bearing : Delrin plated 606zz bearing
Frame Profile Width : 5X rail (11 cm),3X rail (7 cm)
Bottom Rail Profile Height : Threshold (4,5 cm), without threshold (1,8 cm)
End profile options : Double sided handle , Flat end profile
Lock options : Standard sliding lock, keyed lock
plastic cover : Polyamide
Sealing : UV added bristle brush
Glass profile combination : polyurethane adhesive
Maximum Height :2500mm
Maximum Panel Size: 2,5 m2
Maximum Panel Weight : 65 kg

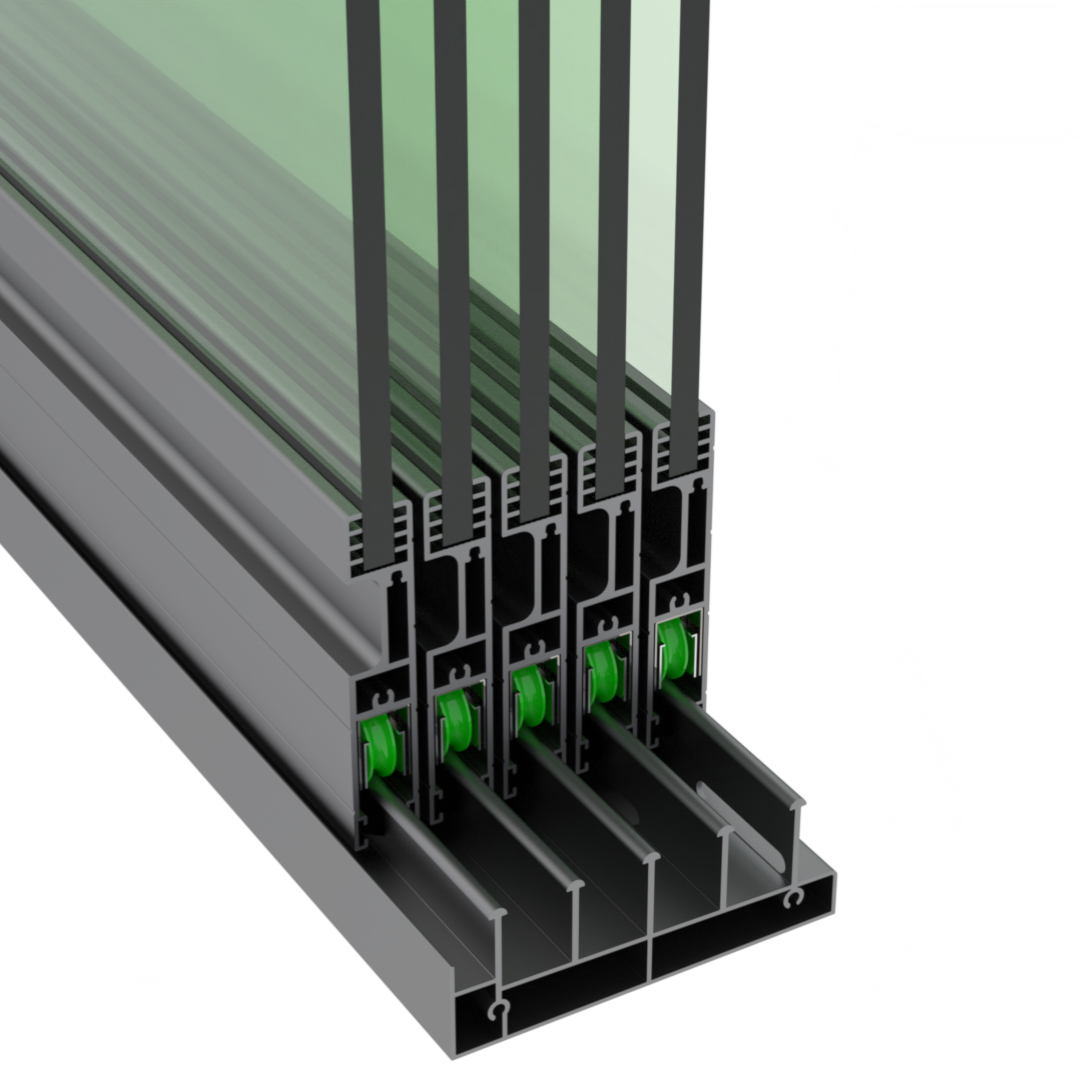

Patented Dropper Bottom Profile
Without threshold rail profile
One Side Handle profile
Double Side handle profile
Middle joint details
Intermediate wick Details
Key Lock Options
General View
