Especially folding glass balcony systems, which make balconies a part of the house, take the shape of the area where they are applied and offer easy use and comfortable cleaning opportunities. Among the glazing systems, it is preferred in areas such as balconies, winter gardens, terraces, thanks to the highest insulation, minimum rain and wind permeability.. How the system works: The system is opened by moving the panels to the right or left, opening them inward on the exit track and folding them one on top of the other.
Aluminum Profiles:EN6063 T4
Profile color option:Anodized (natural), bronze, electrostatic rall painted, wood veneer
Glass option:8mm tempered glass
Carrier bearing:Delrin coated 608zz bearing
Maximum height:2200 mm
Panel width:350-800mm
Insulation:UV Additive Bristle roving, gasket
System option:Intermediate cassette joint, Aluminum H-joint
Bottom case with dropper
Top case details
Pop-up panel detail
Standard side case
Side frame option with Finished Profile
Aluminum H junction detail
Corner joint detail

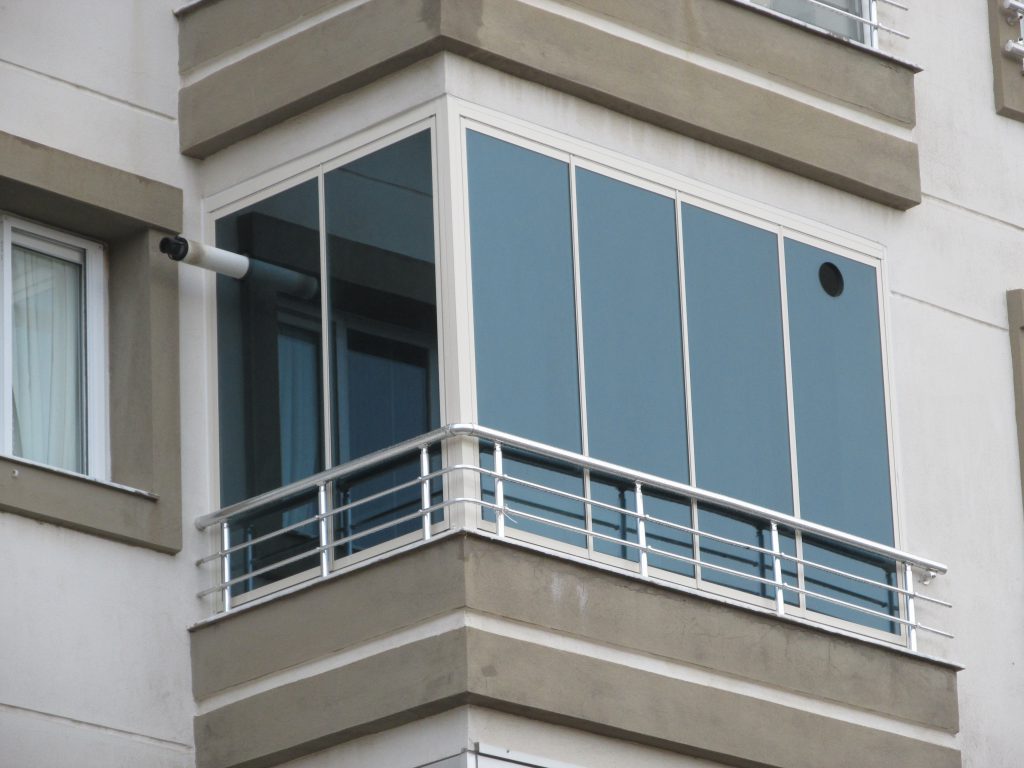

General view
